Client: Sersa Group (CH)
Machine: 2 Mini Screeners on top of each other
Product: Railroad ballast
In 2019, we received a cool challenge from the company Sersa Group from Switzerland. They were looking for a screening machine that had to meet the following conditions:
- Maximum width = 150cm.
- Sifting in 3 fractions (0 – 30mm / 30 – 60mm / +60mm) where with the 0-30 and the +60mm fell on the front of the machine and the 30-60mm (clean ballast) on the other side of the machine.
- The machine is on a hillside so the material must be able to slide off the machine both uphill and downhill.

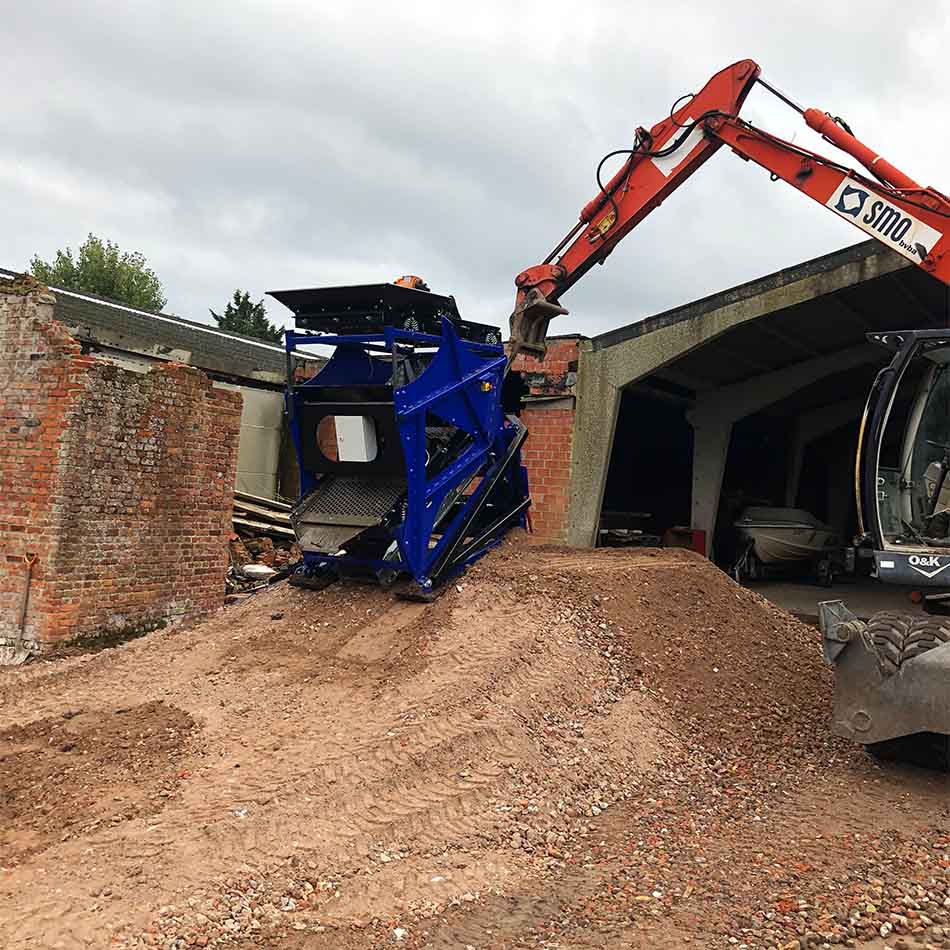

- The machine should be on a carriage so that it can be pulled along by an excavator crane.
- Screening nets strong enough to screen out railroad ballast.

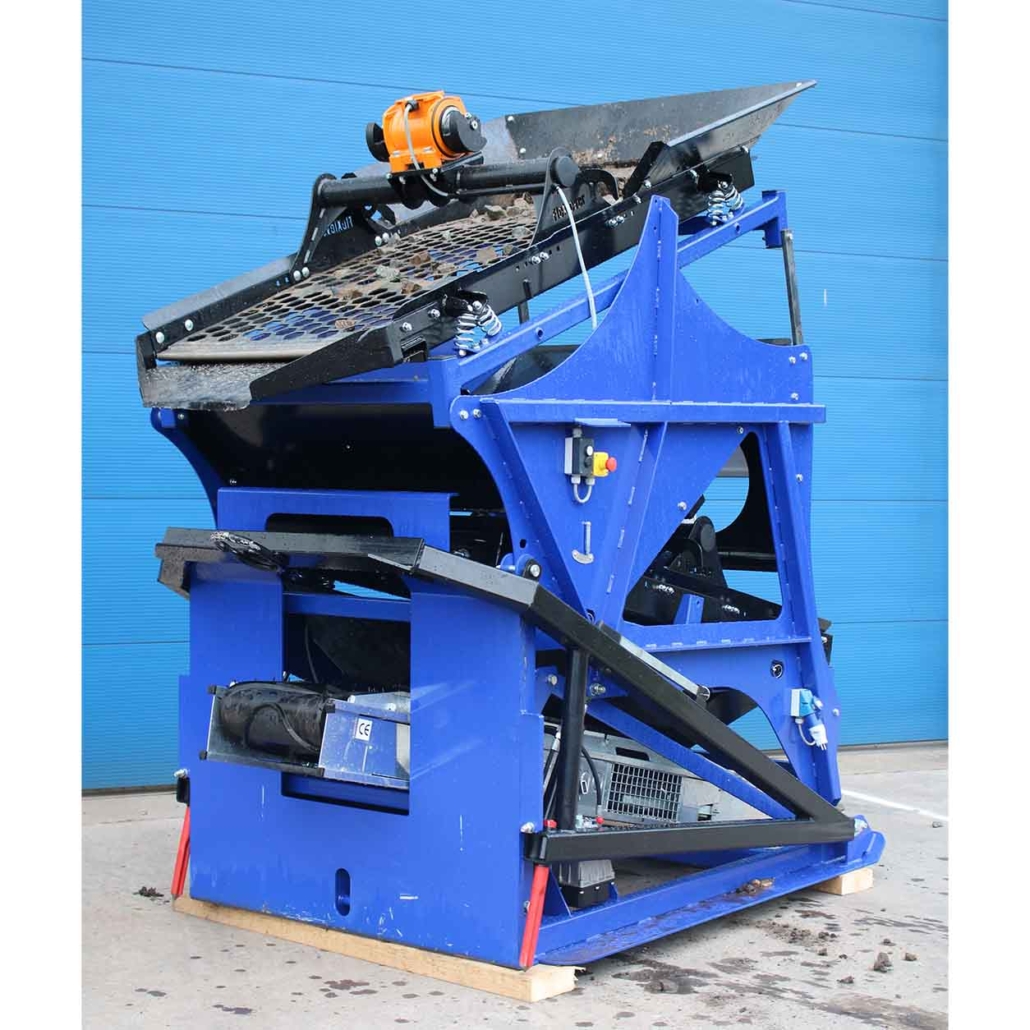

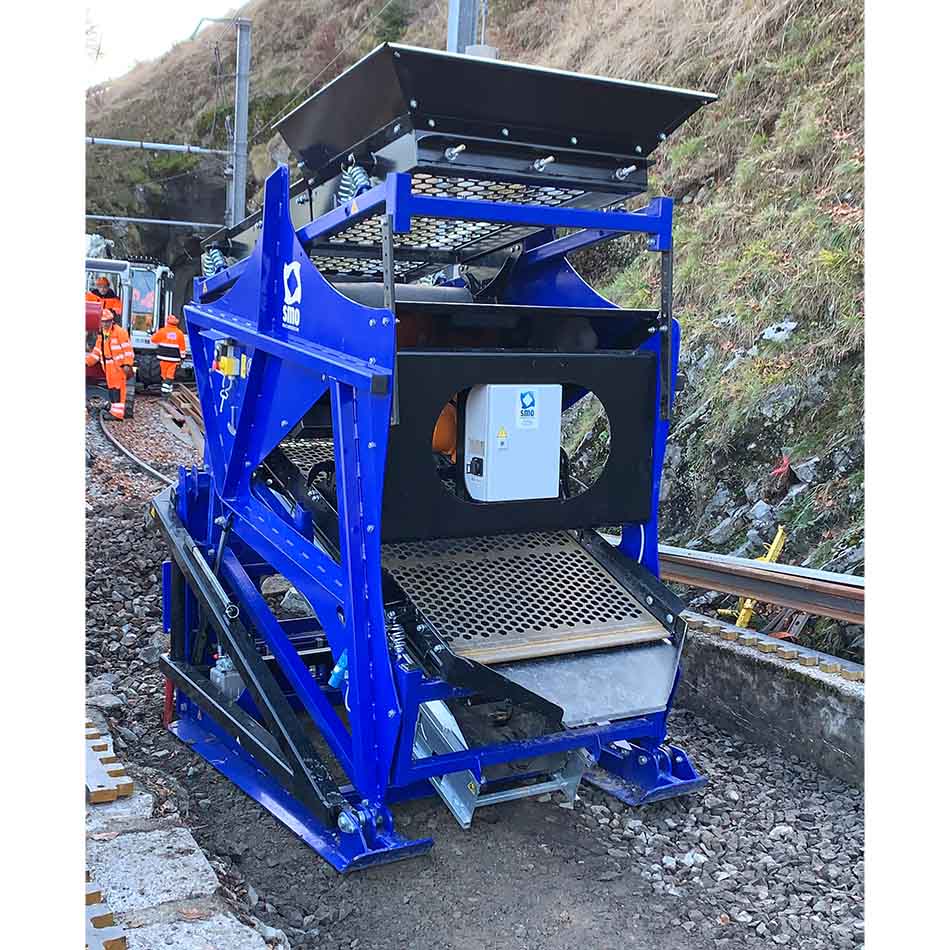

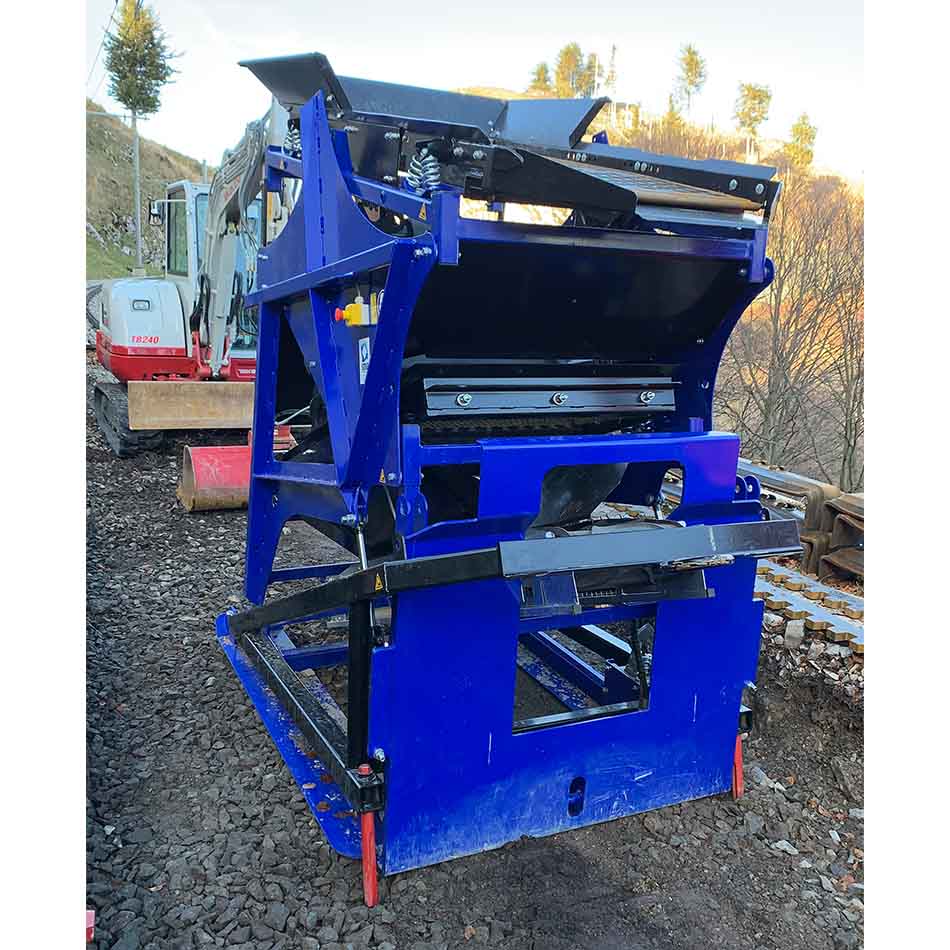

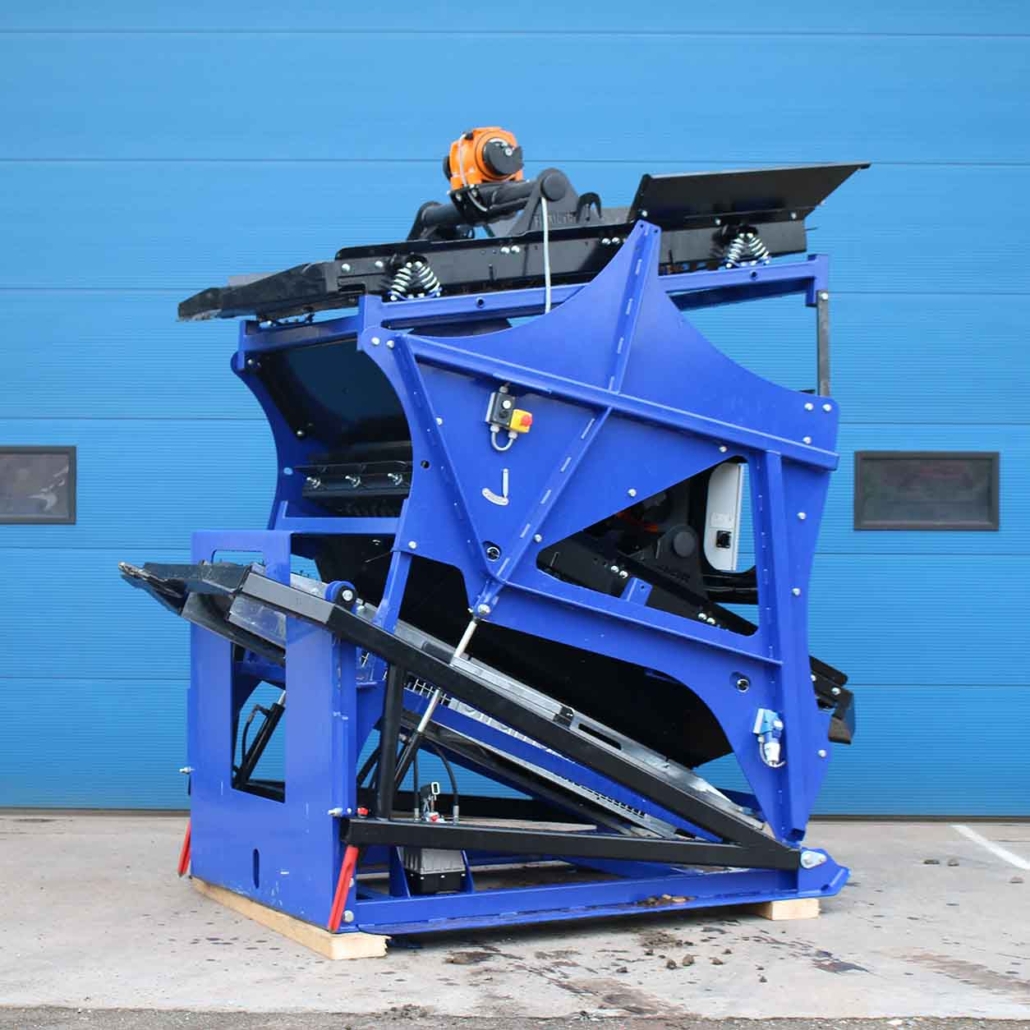

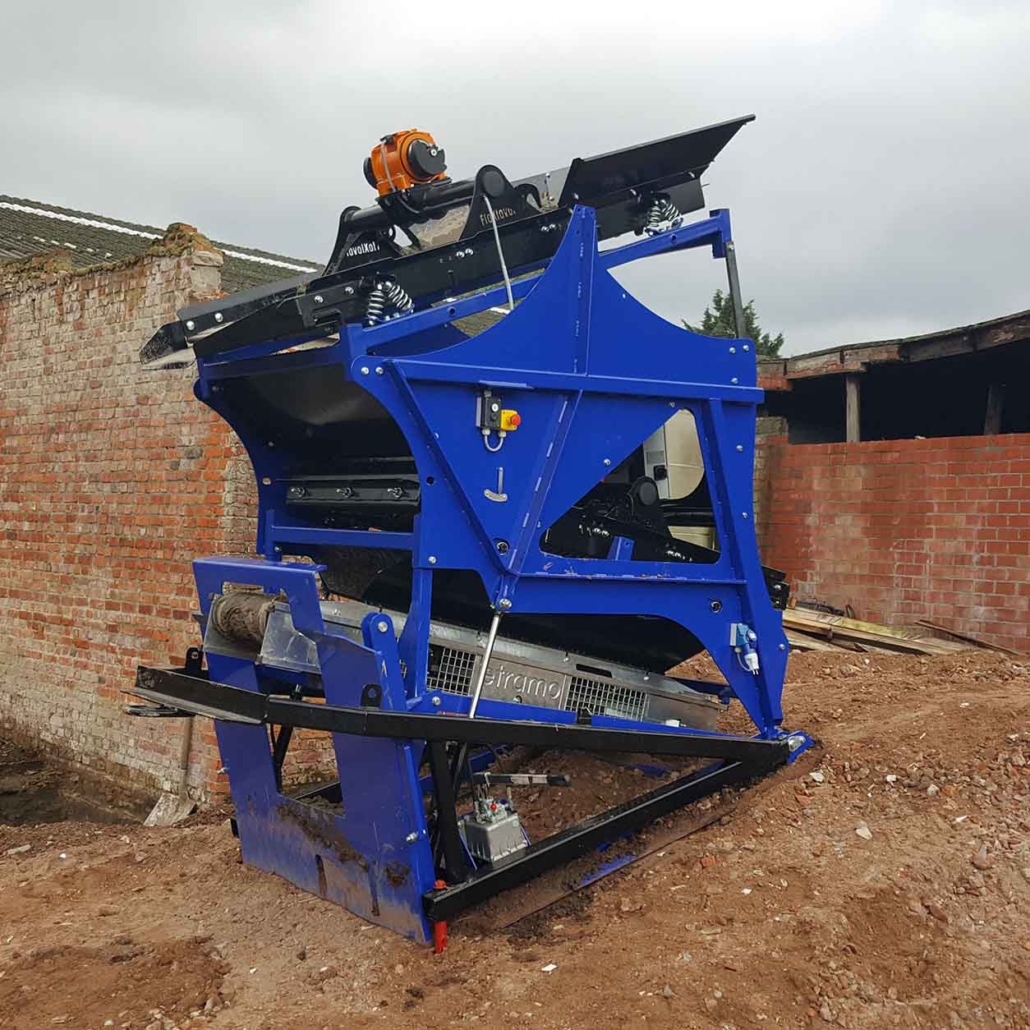

Our design consisted of 2 Mini Screeners placed on top of each other with a conveyor belt at the bottom. The conveyor discharges the 0-30mm fraction to the front of the machine where it converges with the +60mm fraction. On each machine, the slope can also be adjusted individually by means of a hydraulic jack located under the screener. Instead of using screening nets, punch plates were chosen in this case.
