FleXiever Mini Screener Trailer

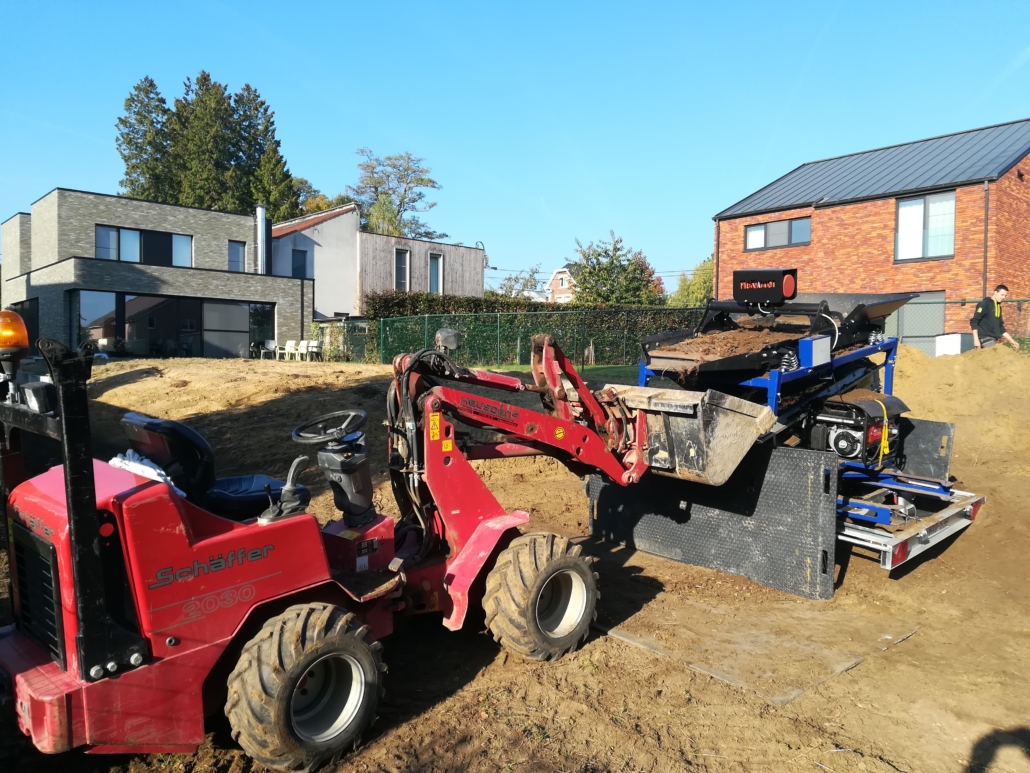

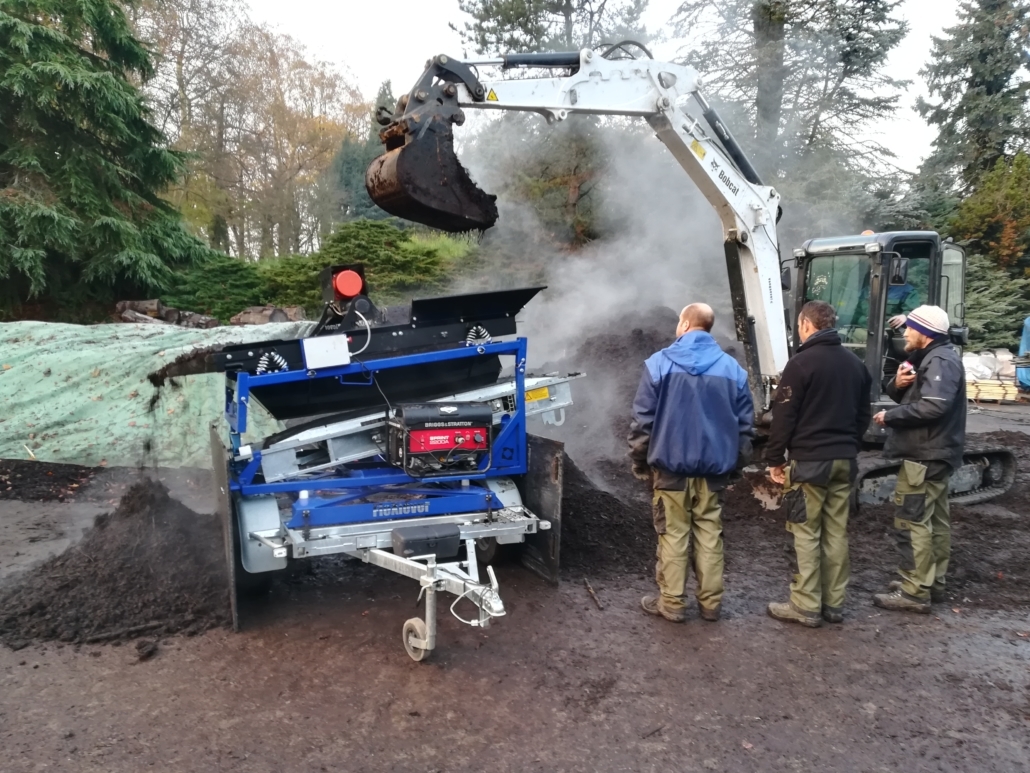

The FleXiever MS Tailer is the Mini Screener mounted on a trailer with a conveyor. When mounted on a trailer (680 kg), the Mini Screener is the ideal machine for small screening jobs or for screening in confined spaces.

The machine is positioned lengthwise on the trailer when in ‘driving mode’. You have to rotate the Mini Screener 90° when screening. This means that the coarse and fine fractions (discharge via a 2 m conveyor) fall left and right of the trailer, thus maintaining a free passageway. You can put (synthetic) road plates in front of the tyres for easy removal of the material.

You can also remove the Mini Screener from the chassis in one unit, together with the 2 m conveyor.

>> Download the information sheet of FleXiever Mini Screener Trailer

>> View some videos

Details

Dimensions L x W x H mobile: 3679 x 1790 x 1954 mm
Dimensions L x W x H stationary: 3679 x 2528 x 1954 mm
Weight : 680 kg
Screen area: 1830 x 900 mm
Screen angle: 3° – 11°
Mesh aperture: 0,5 x 0,5 – 80 X 80 mm
Engine: Vibration motor, freely adjustable. 230V – 0.52 kW
Conveyor belt: 2 m
Maximum bucket width: 1200 mm
Capacity: 10 – 20 t/h
Dump height: 195 cm

Options

Spraying system, including water pump and reservoir (40L)
