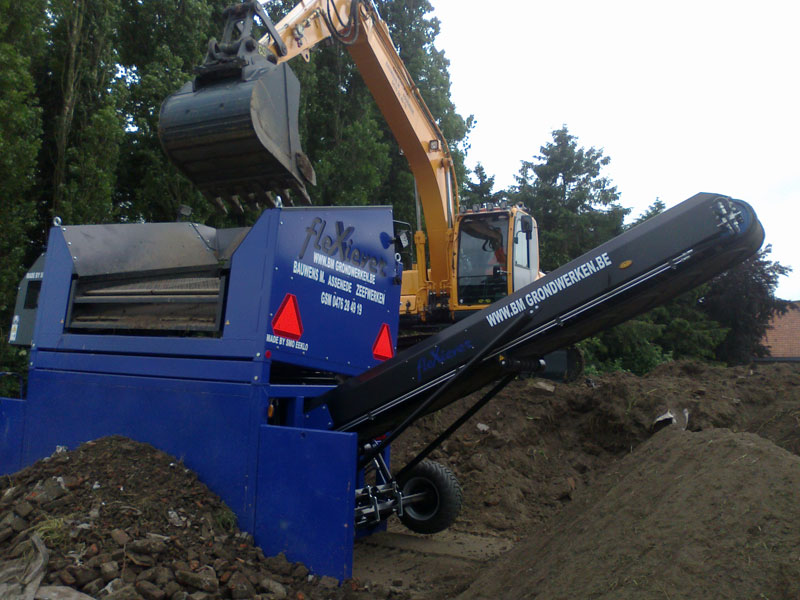

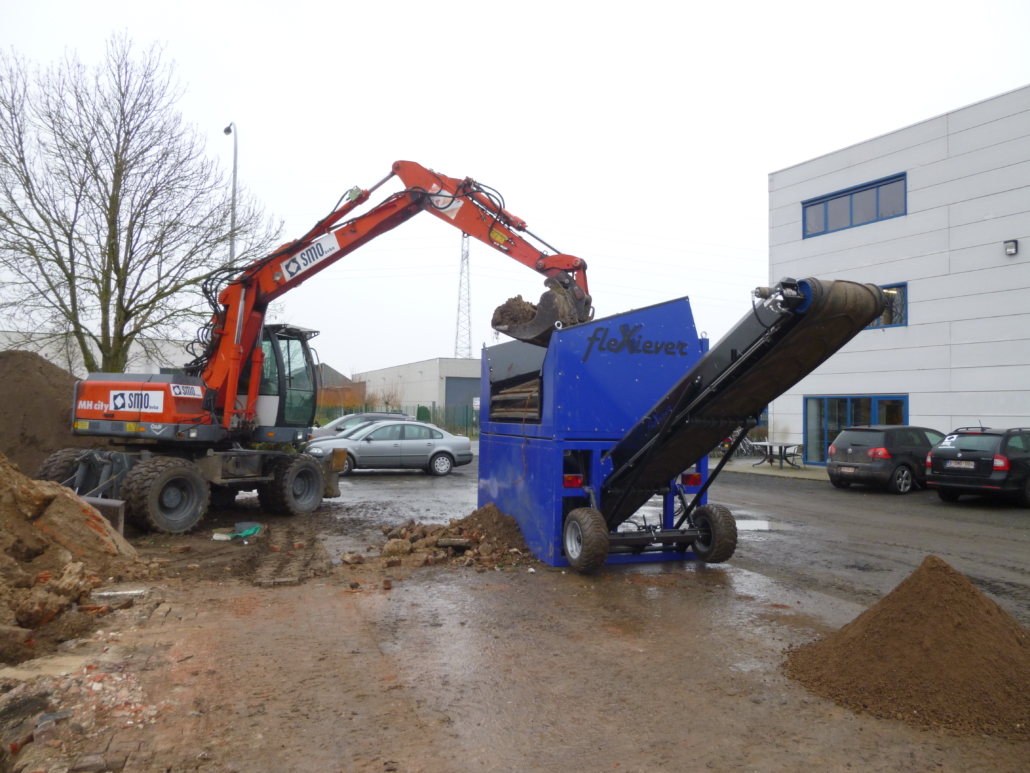

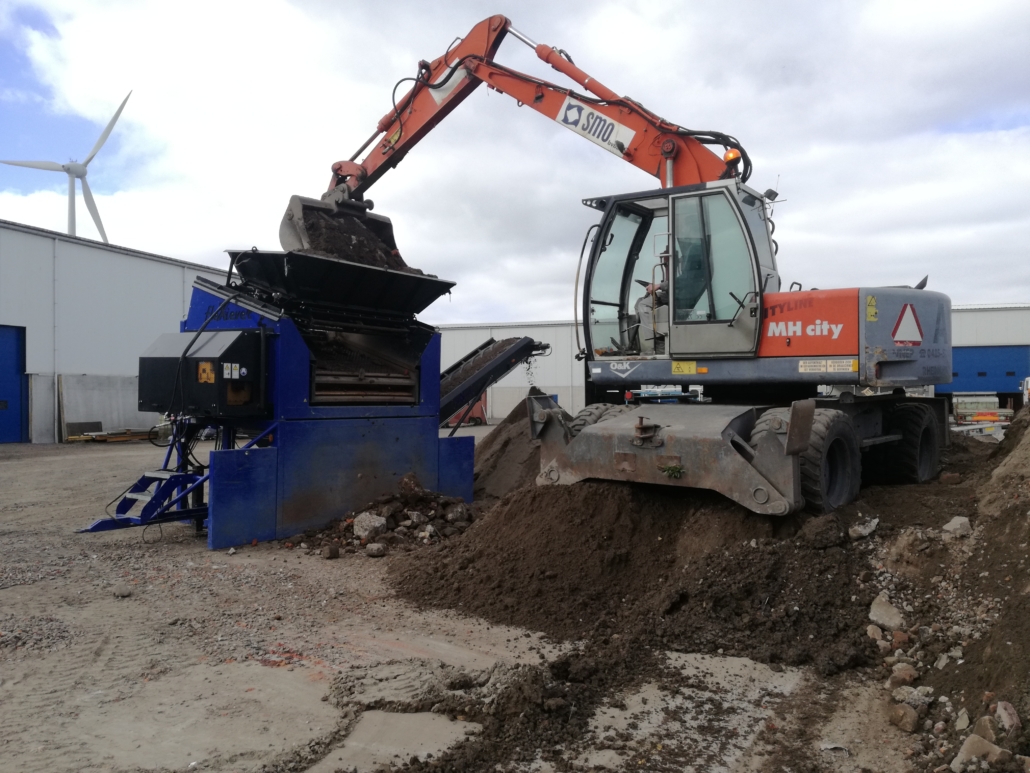

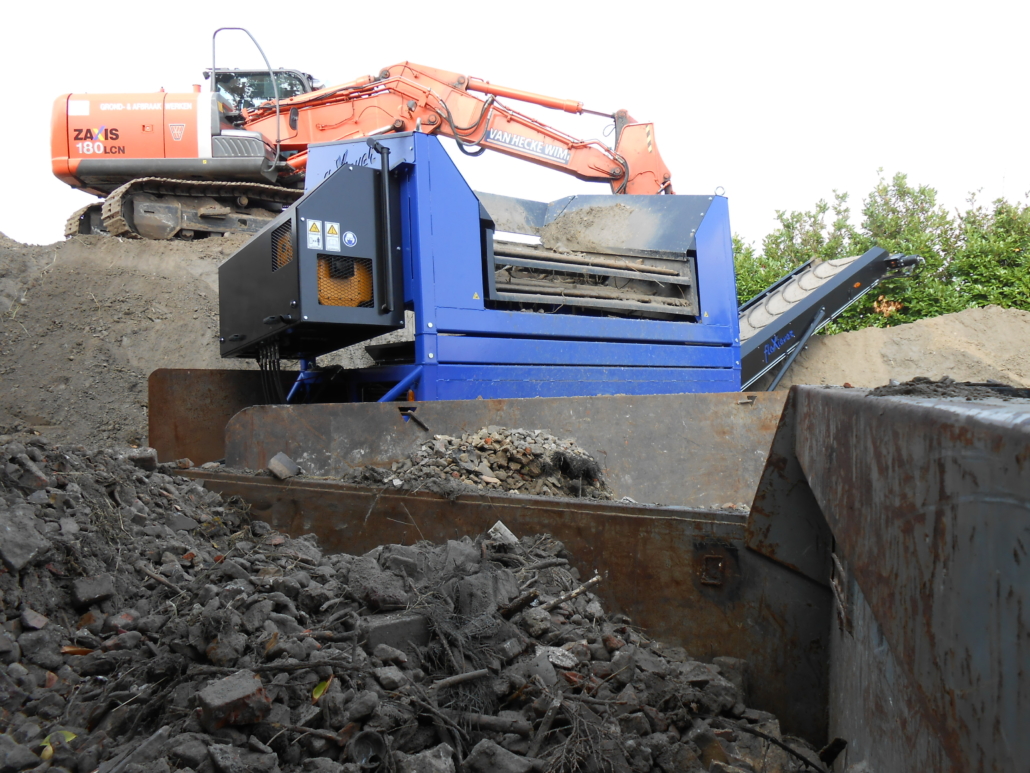

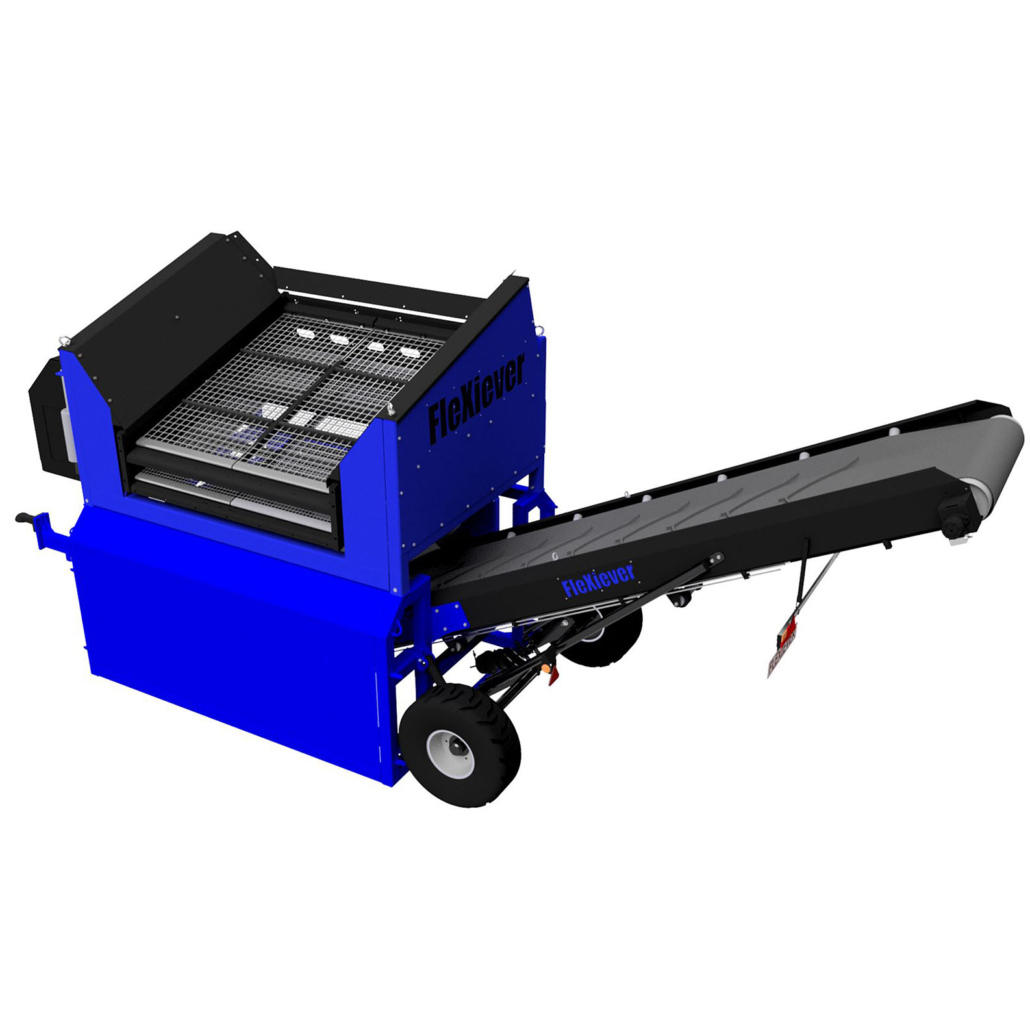

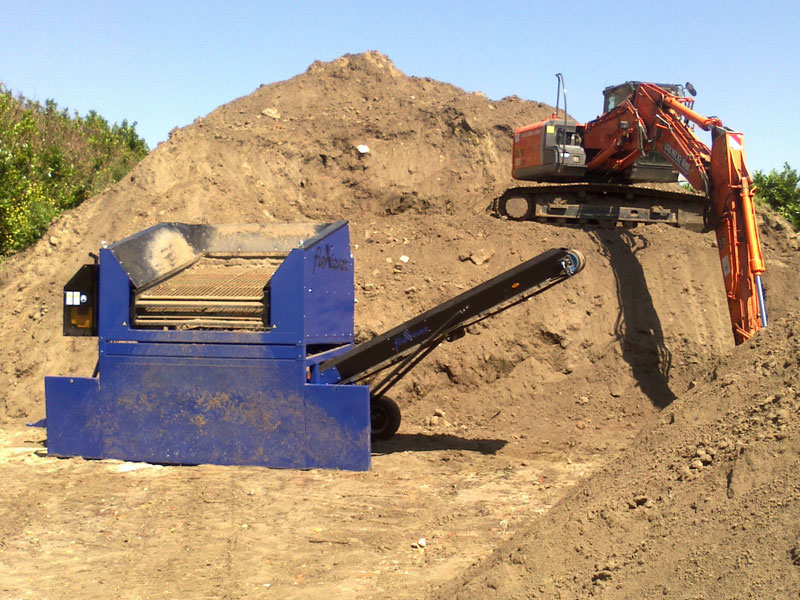

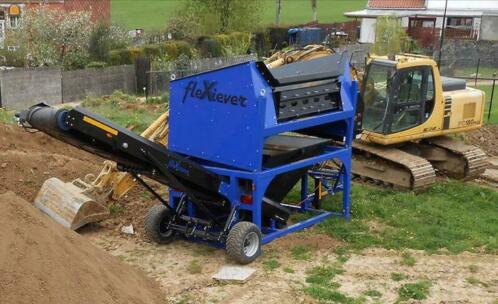

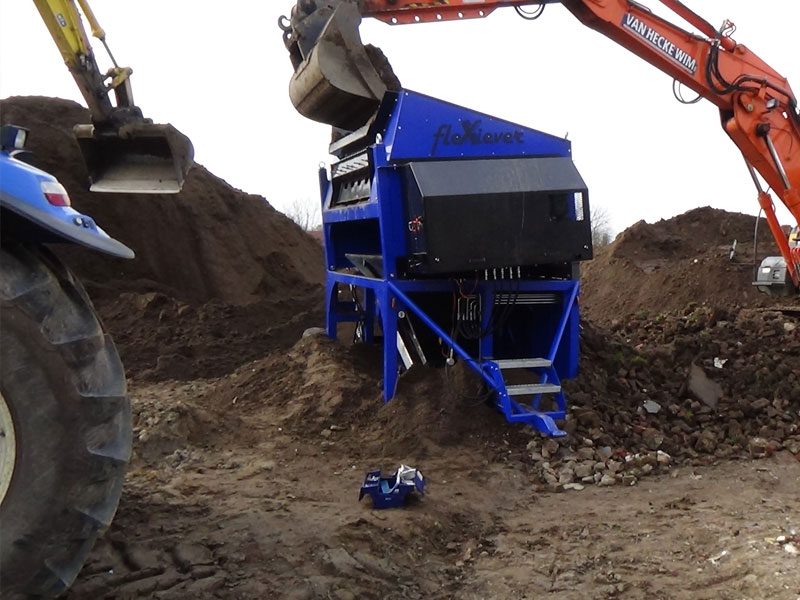

FleXiever Conveyor

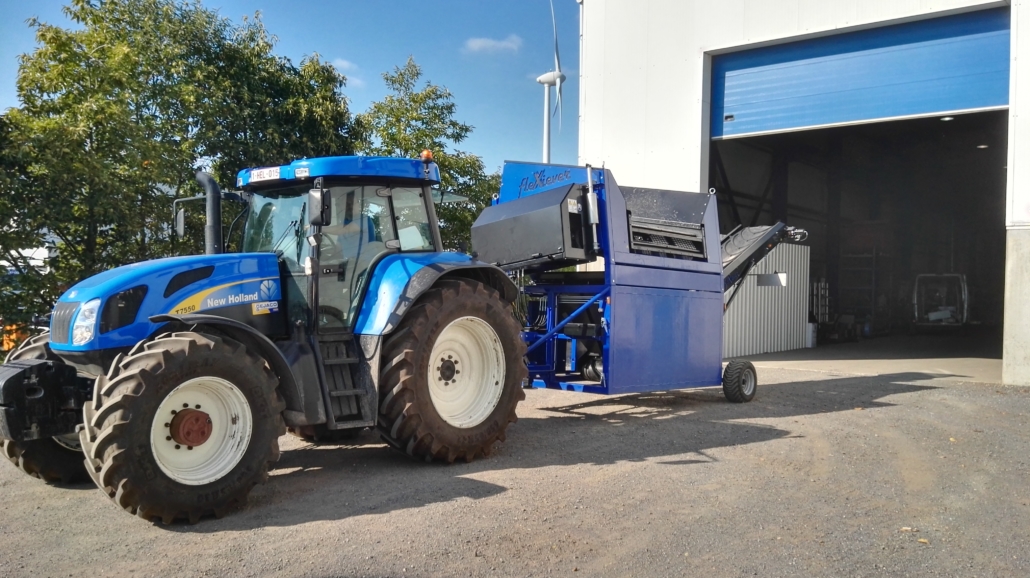

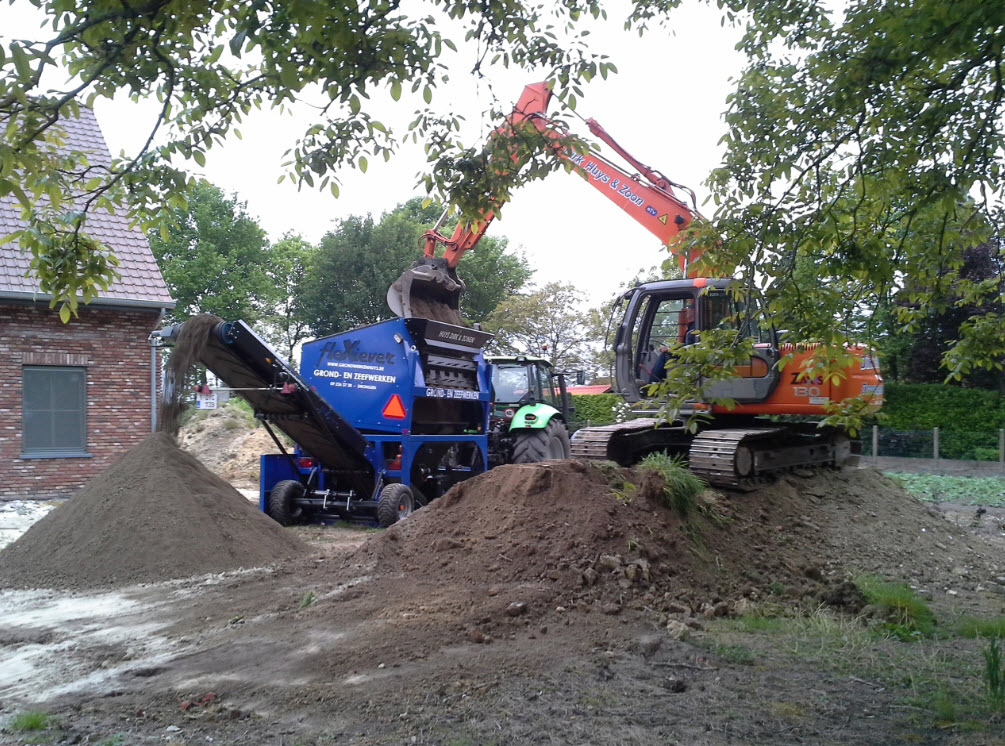

The concepts ‘capacity’ and ‘mobility’ were the central themes in the development of the FleXiever Conveyor. The FleXiever screener unit is mounted on a chassis with a conveyor belt and can therefore run at higher volumes in comparison with e.g. a FleXiever Fixed.

The FleXiever Conveyor meets the standards according to the European road code and can therefore be registered in any European country. In addition, the FleXiever Conveyor is also available stationarily.

>> Download the information sheet of FleXiever Conveyor

View some videos

Details

Dimensions L x W x H unfolded: 8464 x 2398 x 3466 mm
Dimensions L x W x H folded: 8464 x 2398 x 3163 mm
Weight: 3450 kg
Screen area: 1830 x 1830 mm
Screen angle: 17°
Mesh aperture: 0,5 x 0,5 – 80 x 80 mm
Engine: Diesel engine Hatz 1D81 – 14 hp with max. consumption of 3L/h
Maximum bucket width: 2200 mm
Capacity: 50 – 120 t/h
Dump height: 288 cm

Options

Electrical engine
3-fractions frame
Hopper
